PWE 25

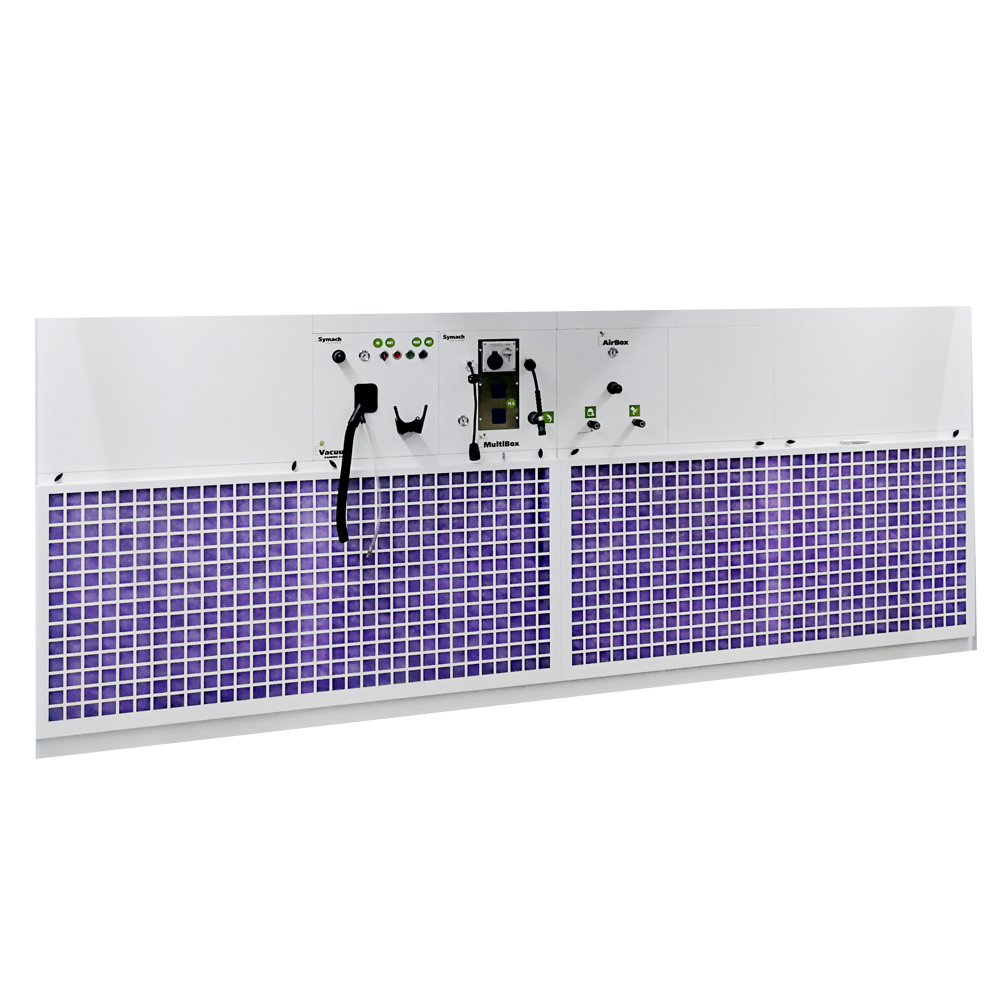

PWE – PREPARATION BAY CROSS DRAFT
MANAGEMENT AND CONTROL SYSTEM
| MiniPC | RASPBERRY | |
| Touch screen | 7″ HD | |
| Intake inverter | 7.5 Kw | 10 HP |
| Exaust inverter | 7.5 Kw | 10 HP |
| Internal temperature probe | YES |
CONFIGURABLE WORK PROGRAMS
| Spraying | One program |
PREPARATION BAY SIZE
| m. | ft. | |
|---|---|---|
| Internal length | 8,00 | 26,25 |
| External length | 8,20 | 26,90 |
| Internal width | 4,50 | 14,76 |
| External width | 4,70 | 15,42 |
| Internal height | 3,00 | 9,84 |
| External height | 3,70 | 12,14 |
| Option Internal height | 3,50 | 11,48 |
| Option External height | 4,20 | 13,78 |
VENTILATION GROUP CROSS DRAFT
| m. | ft. | |
|---|---|---|
| Inside preparation bay extraction window | 4.0 X 1.3 m. | 13.2 X 4.3 Ft. |
| Length | 2.0 m. | 6.56 Ft. |
| Width | 1,30 | 4,27 |
| Space needed for filter changes | 0,70 | 2,30 |
| Rear positioning | YES | YES |
| Intake motor | 7.5 Kw | 10 HP |
| Option Extraction motor | 7.5 Kw | 10 HP |
| Intake fan | 24.000 mc/h | 14.150 CFM |
| Option Exhaust fan | 24.000 mc/h | 14.150 CFM |
BURNER
| Option Burner | 200 Kw | 730.000 BTU |
| Option Burner | 300 Kw | 1.100.000 BTU |
| Fuel | NATURAL GAS – LPG |
LIGHT STRIP LED
| Color fidelity | 0.94 CRI | |
| Color Temperature | 5.555 Kelvin | |
| POWERLed 2 rows on the Right and Left | 800 Lux | 74 Ft. Candle |
| Option 3rd row of PowerLed | 2.200 Lux | 200 Ft. Candle |
MANUFACTURING
| mm | Gauge | |
|---|---|---|
| Sandwich panels wall mm 50 pre-painted white | 1.2 | 16 |
| Galvanized sheet metal frame | 2.0 | 12 |
| Galvanized sheet metal ducts | 1.0 | 18 |
| Ventilation group galvanized sheet metal | 3.0 | 8 |
| Stainless steel finishes | 1.0 | 18 |
FILTERS
| mq | sq. ft. | |
|---|---|---|
| Plenum filter | 26.0 | 279.8 |
| Poket filter Intake and exauste | 12.0 | 129.2 |
