Paint booth with DryKing technology for drying, configurable in length and height for cars and commercial vehicles
IMAGES
VIDEOS
The unique features of this paint booth are:
The innovative ventilation and burner system, featuring new technology supported by specialized electronics, enables the water base to dry in just 8 minutes, compared to the 30 minutes or more required by traditional booths.
Even the drying times of the clear lacquer are reduced by 30% compared to those in a traditional booth.
The Symach Strip PowerLED lighting system differs from a classic LED tube light because, with a unique reflector, the light is concentrated on the vertical part of the car, where the painter works most of the time.
The mix of LEDs that compose it ensures abundant light, a perfect light color, and visual fidelity to colors. Not least, it is more relaxing for the human eye than a standard LED light.
The booth can be customized with different accessories that allow you to change its size, configuration, and style.
DRYKING 25
PAINTBOOTH

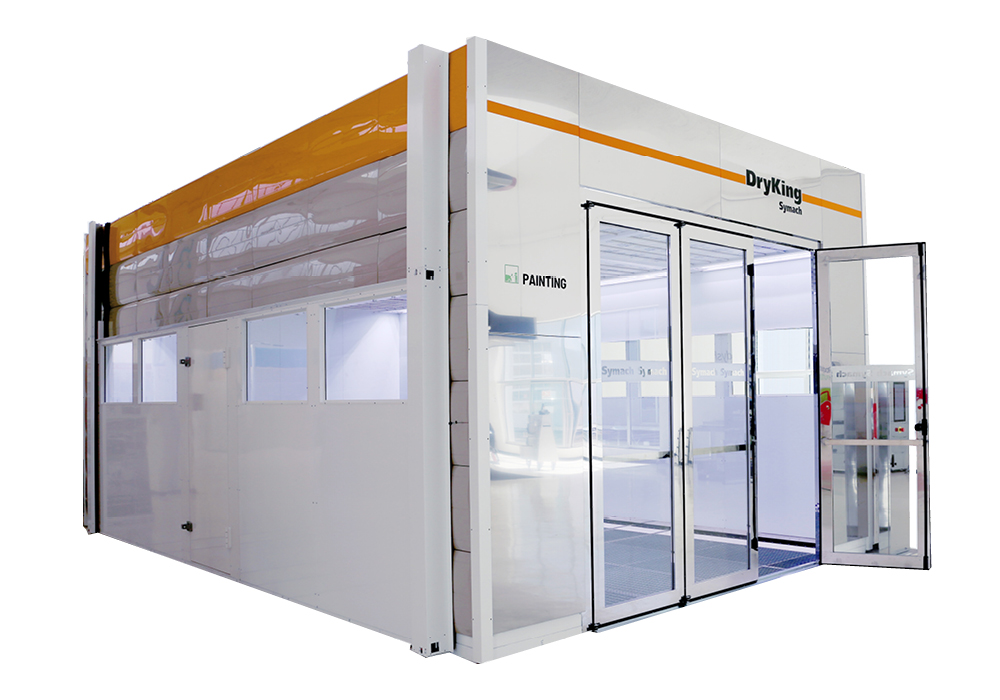

DK DryKing paint and drying booth
DryKing DRYING PERFORMANCE VS/ classic Paint Booth
| Drying technology | DRYKING | CLASSIC SPRAY BOOTH |
| Waterborne drying time | 0:08 minutes | 30:00 minutes |
| Clear drying time | 20:00 minutes | 30:00 minutes |
MANAGEMENT AND CONTROL SYSTEM
| PLC | B&R | |
| Touch screen | 15 pollici Ultra HD | |
| Intake inverter | 11 Kw | 15 HP |
| Exahust inverter | 11 Kw | 15 HP |
| Internal temperature thermostat | YES | |
| External temperature thermostat | YES | |
| External humidity detector | YES | |
| Intake pressure sensor | YES | |
| Extraction pressure sensor | YES | |
| Intake pocket filter clogging sensor | YES | |
| Extraction pocket filter clogging sensor | YES |
CONFIGURABLE WORKING PROGRAMS
| Drying program WET ON WET SEALER | Configurable drying program |
| Dring program WATERBORNE | Configurable drying program |
| Drying program CLEAR | Multiple configurable program |
| Colling down program | Automatico a tempo configurabile |
| Spraying program | Ventilation with automatic activation and shutdown |
| Stand-buy program between various work phases | Automatic start and stop |
SELF-DIAGNOSIS AND MAINTENANCE AND CONFIGURATIONS
| Manage its maintenance activity with alarms and sending messages |
| Self-diagnosis in case of an anomaly with a tutorial for resolution |
| Configurable overpressure or underpressure painting |
| Automatic cabin shutdown at the end of the shift with configurable time |
| Remote assistance module via ethernet |
| Connection to the REMO portal for maintenance and usage tutorials and maintenance scheduler |
| From the REMO platform, records of the painting jobs to be done and those completed can be sent and received. |
DRYKING MEASURE
| m. | ft. | |
|---|---|---|
| Internal length | 8,00 | 26,25 |
| External length | 8,20 | 26,90 |
| Internal width | 4,50 | 14,76 |
| External width | 4,70 | 15,42 |
| Internal height | 3,00 | 9,84 |
| External height | 3,70 | 12,14 |
| Option Internal length | 10,00 | 32,81 |
| Option External length | 10,20 | 33,47 |
| Option Internal height | 3,50 | 11,48 |
| Option External height | 4,20 | 13,78 |
VENTILATION GROUP
| m. | ft. | |
|---|---|---|
| Length | 4,00 | 13,12 |
| Width | 1,30 | 4,27 |
| Space needed for filter changes | 0,70 | 2,30 |
| Rear positioning | YES | YES |
| Side positioning | YES | YES |
| Intake motor | 11 Kw | 15HP |
| Extraction motor | 11 Kw | 15HP |
| Intake fan | 34000 mc/h | 20050 CFM |
| Exhaust fan | 34000 mc/h | 20050 CFM |
BURNER
| Kw | BTU/h | |
|---|---|---|
| Burner | 200 | 730.000 |
| Option burner | 300 | 1.100.000 |
| Fuel | NATURAL GAS – LPG |
LIGHT STRIP LED
| Color fidelity | 0.94 CRI | |
| Color Temperature | 5.555 Kelvin | |
| POWERLed 3 rows on the Right and Left | 2.200 Lux | 200 Ft. Candle |
| Option POWERLed 4 rows on the Right and Left | 2.500 Lux | 232 Ft. Candle |
BASAMENT
| Kg | Lb. | |
|---|---|---|
| Car floor grid | 700,00 | 1.543,50 |
| Commercial vehicle floor grid | 800,00 | 1.764,00 |
| Floor with three rows of grids m. 2.7 X 8.0 | YES | YES |
| Pit depth | 0,65 | 2,13 |
| Option Floor with five rows of grids m. 4.4 X 8.0 | YES | YES |
| Option Raised floor | 0.45 m. | 1.48 Ft. |
MANUFACTURING
| mm | Gauge | |
|---|---|---|
| Sandwich panels wall mm 50 pre-painted white. | 1.2 | 16 |
| Galvanized sheet metal frame | 2.0 | 12 |
| Galvanized sheet metal ducts | 1.0 | 18 |
| Ventilation group galvanized sheet metal | 3.0 | 8 |
| Stainless steel finishes | 1.0 | 18 |
FILTERS
| mq | sq. ft. | |
|---|---|---|
| Plenum filter | 26.0 | 279.8 |
| Paint stop floor filter 3 rows of grids | 20.0 | 215.3 |
| Paint stop floor filter 5 rows of grids | 35.0 | 376.7 |
| Poket filter Intake and exauste | 12.0 | 129.2 |
